Carbide Tipped Rip Saw Blades
GS SERIES
FREE SHIPPING on orders of $165.00 or more
 |

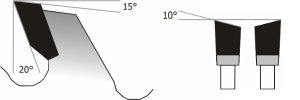

Rip Saw Blades, Alternate Top Bevel Grind (ATB) For ripping and cross-cutting of solid wood and board materials on table saws, special sawing machines, etc. |
| Product # | Diameter | Teeth | Tooth Design |
Kerf | Plate | Bore | Hook | Price | ADD TO CART: |
|---|---|---|---|---|---|---|---|---|---|
| 01-01002401 | 10" | 24T | ATB | .126" | .087" | 5/8" | 20 ° | $75.00 | |
| 01-01202802 | 12" | 28T | ATB | .126" | .087" | 1" | 20 ° | 85.00 | |
| 01-01403202 | 14" | 32T | ATB | .138" | .098" | 1" | 20 ° | 99.00 |
Back to GS German Saw Blade Index
 |
Anti-Kickback Rip Blades, Alternate Top Bevel Grind (ATB) For ripping and cross-cutting of solid wood and board materials on table saws and special sawing machines. This sawblade design incorporates a chip limiter to reduce kickbacks. |
| Product # | Diameter | Teeth | Tooth Design |
Kerf | Plate | Bore | Hook | Price | ADD TO CART: |
|---|---|---|---|---|---|---|---|---|---|
| 03-01002401 | 10" | 24T | ATB | .126" | .087" | 5/8" | 20 ° | $75.00 | |
| 03-01202802 | 12" | 28T | ATB | .126" | .087" | 1" | 20 ° | 88.00 | |
| 03-01403202 | 14" | 32T | ATB | .138" | .098" | 1" | 20 ° | 99.00 |
Back to GS German Saw Blade Index
 |
Heavy Duty Rip Saw Blades, Flat Top Grind (FTG) Specially designed for heavy duty ripping along the grain in both hard and soft woods. |
| Product # | Diameter | Teeth | Tooth Design |
Kerf | Plate | Bore | Hook | Price | ADD TO CART: |
|---|---|---|---|---|---|---|---|---|---|
| 05-01002401 | 10" | 24T | FTG | .145" | .095" | 5/8" | 20 ° | $85.00 | |
| 05-01202802 | 12" | 28T | FTG | .160" | .110" | 1" | 20 ° | 99.00 | |
| 05-01403202 | 14" | 32T | FTG | .170" | .120" | 1" | 20 ° | 126.00 | |
| 05-01603602 | 16" | 36T | FTG | .170" | .120" | 1" | 20 ° | 166.00 | |
| 05-01804002 | 18" | 40T | FTG | .184" | .134" | 1" | 20 ° | 228.00 |
Back to GS German Saw Blade Index
 |
Glue Line Rip Saw Blades, Triple Chip Grind (TCG) The smoothest cutting rip blades for all glue line applications. |
| Product # | Diameter | Teeth | Tooth Design |
Kerf | Plate | Bore, Pinholes |
Hook | Price | ADD TO CART: |
|---|---|---|---|---|---|---|---|---|---|
| 07-01003001 | 10" | 30T | TCG | .145" | .095" | 5/8" | 20 ° | $99.00 | |
| 07-01203602 | 12" | 36T | TCG | .160" | .110" | 1" | 20 ° | 119.00 | |
| 07-01203605 1 | 12" | 36T | TCG | .126" | .083" | 3-1/8" | 20 ° | 138.00 | |
| 07-01203608 1 | 12" | 36T | TCG | .150" | .110" | 3-1/8" | 20 ° | 144.00 | |
| 07-01203609 1 | 12" | 36T | TCG | .160" | .110" | 3-1/8" | 20 ° | 149.00 | |
| 07-01404002 | 14" | 40T | TCG | .170" | .120" | 1" | 20 ° | 158.00 | |
| 07-01403603 2 | 14" | 36T | TCG | .169" | .120" | 2" bore, 9/16" PH on 5" bolt circle |
20 ° | 155.00 | |
| 07-01603602 | 16" | 36T | TCG | .170" | .120" | 1" | 20 ° | 169.00 | |
| 07-30003670 | 300mm | 36T | TCG | 4.2mm | 2.8mm | 70mm, 2 keys 20x5mm |
20 ° | 155.00 | |
|
1 For "Mereen Johnson" machine 2 For "Diehl" machine |
|||||||||
Back to GS German Saw Blade Index
